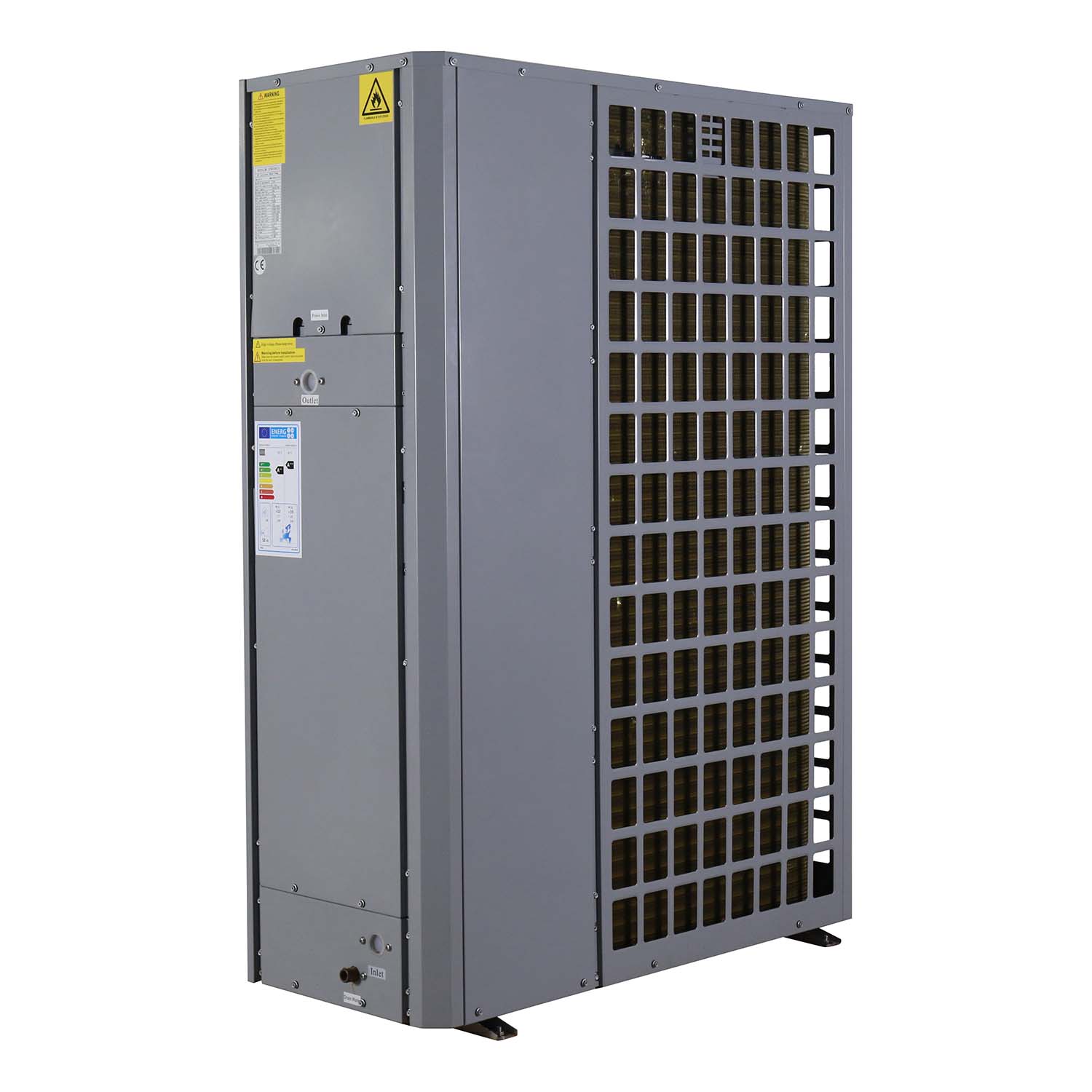

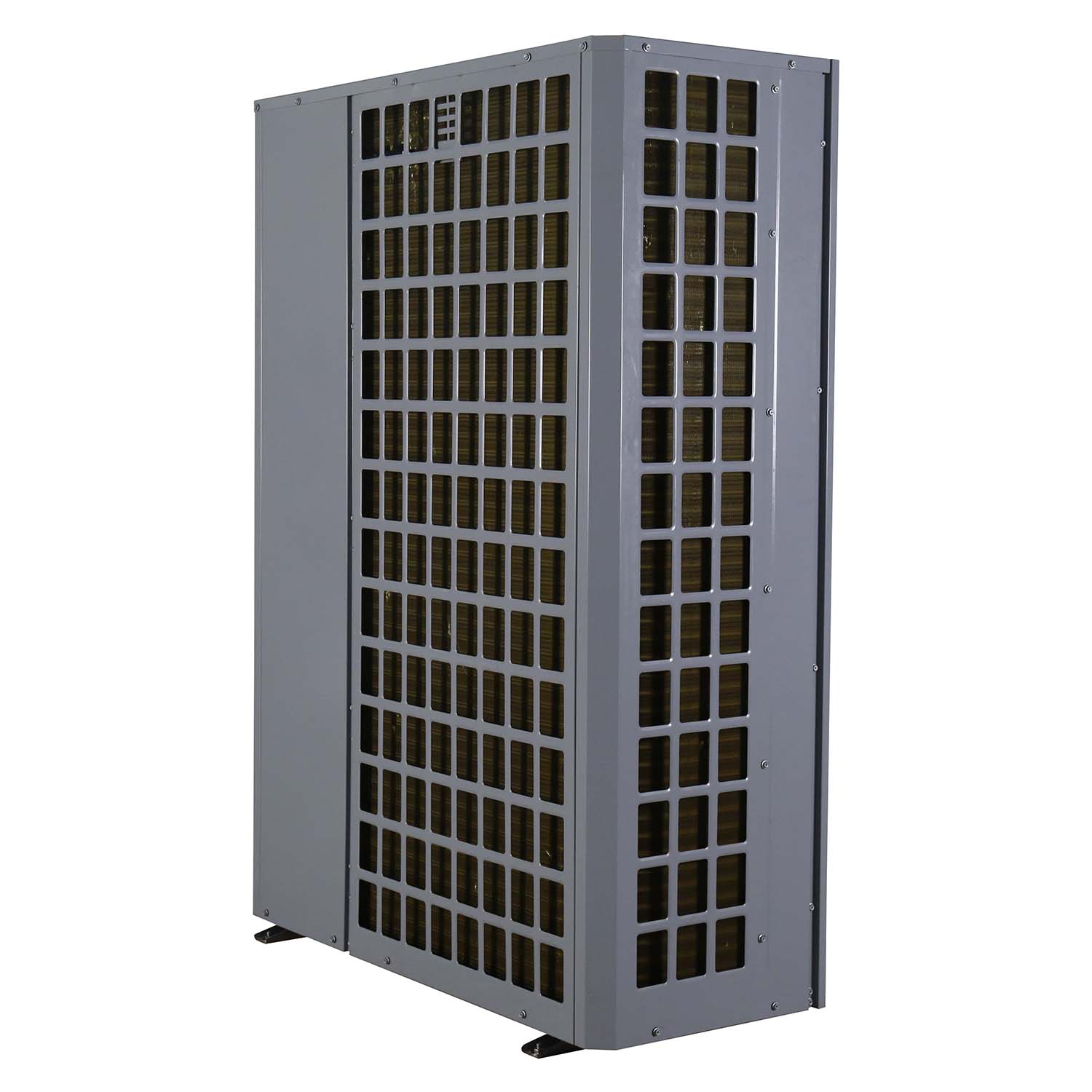

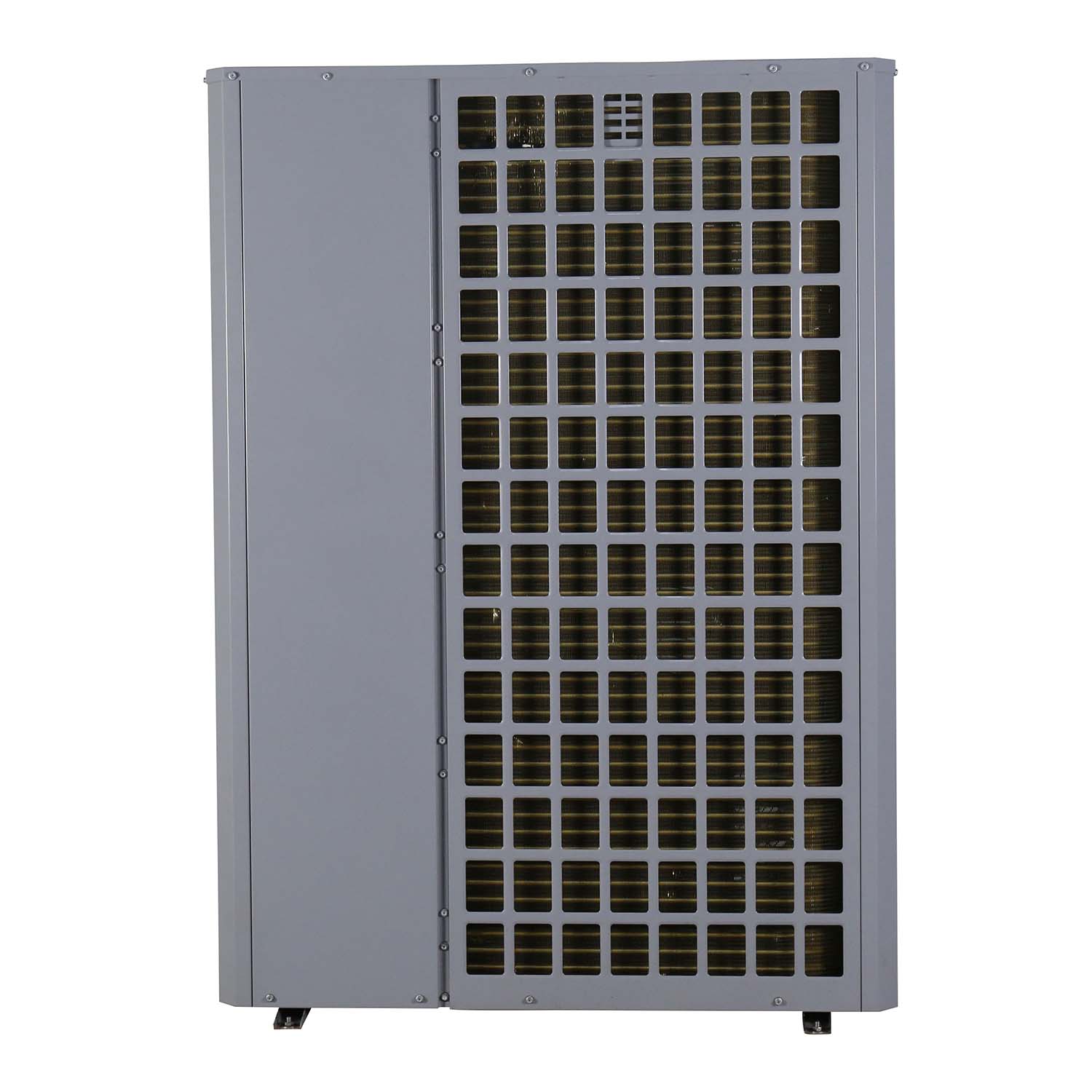

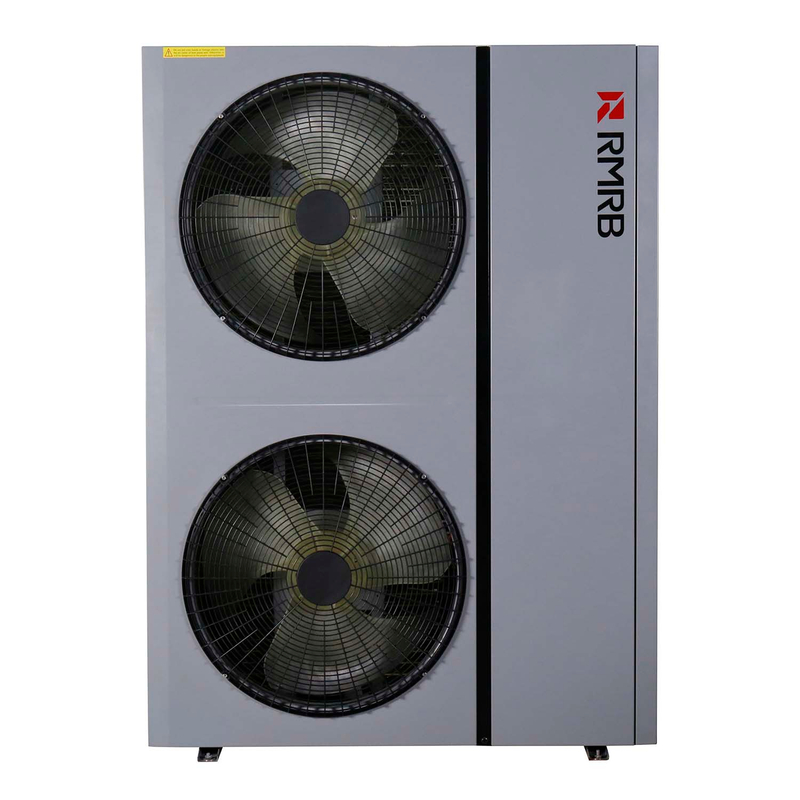

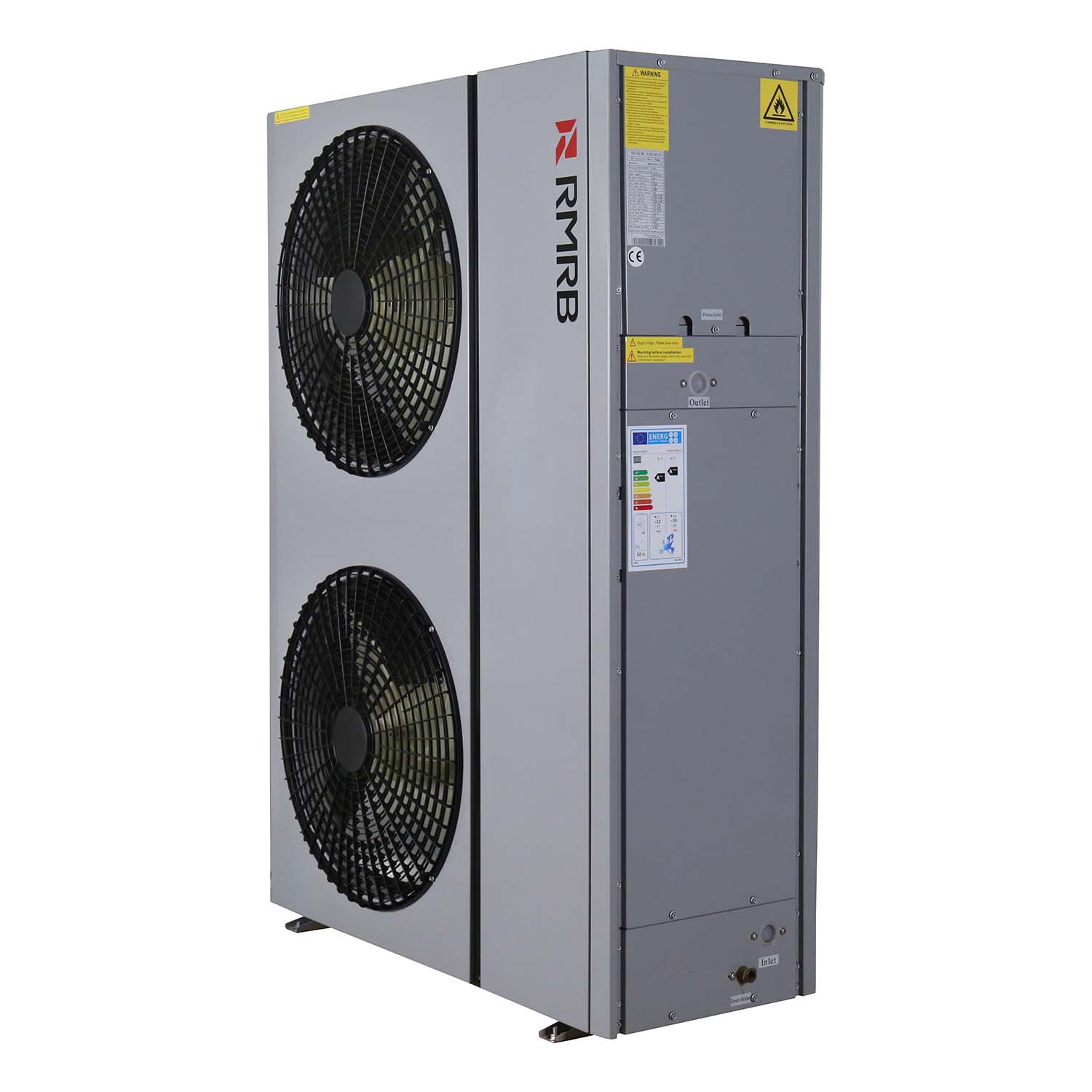

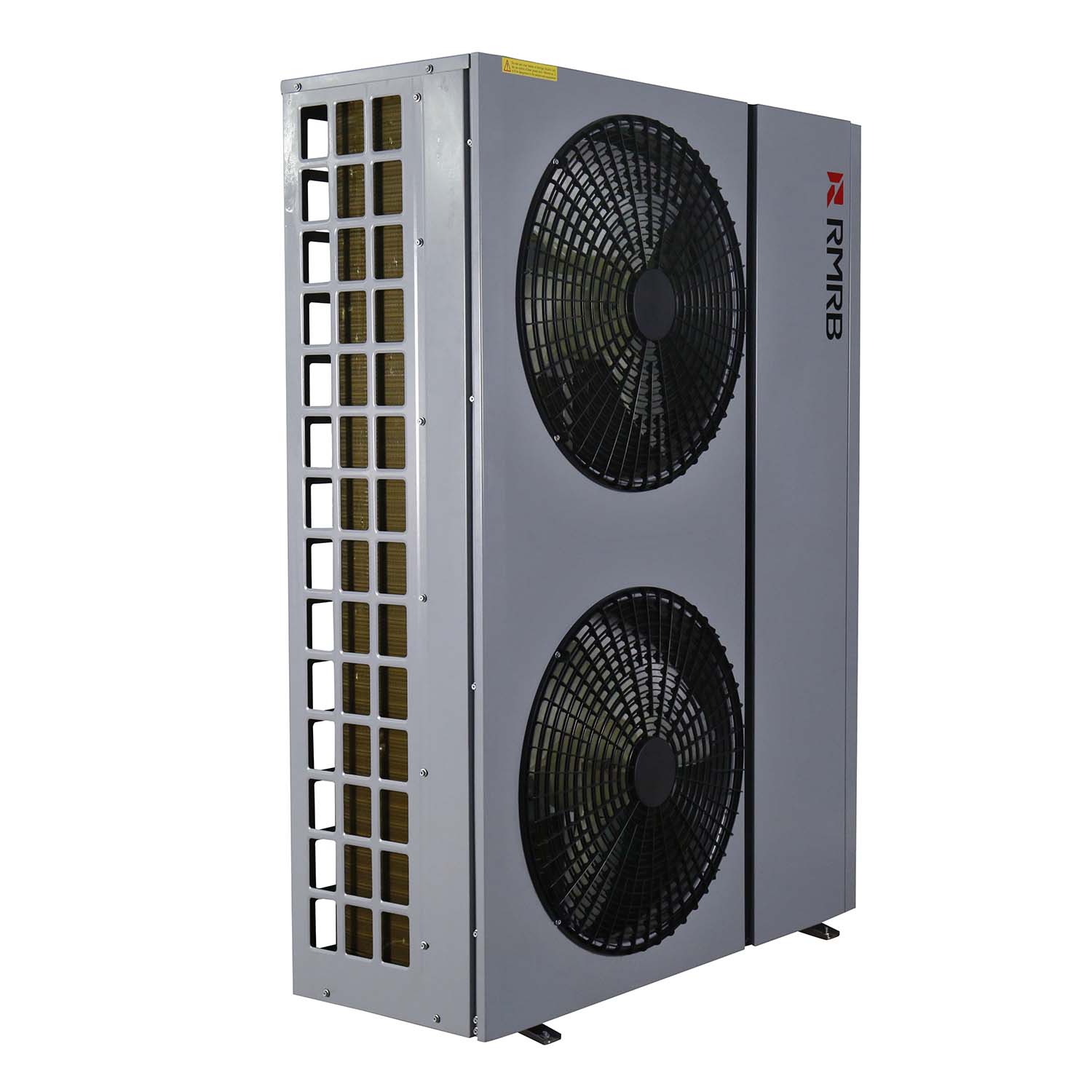

Domestic Cooling and Heating Air Source Heat Pump

16kw R32 DC inverter  Heat pump With Built-in Water Tank

Color: Silver                              Heating source: air source                                           Certificates: CE,CB,ERP

Warranty: 2 years                     Electric heating type: 3kw                                            Installation: floor standing

Instant water heater inverter heat pump:

1.Internation brand twin rotary compressor,high efficient.

2.Usin R32/R410A  refrigeration.
3.Energy saving 80%.Instant heating and hot water.
4.Mini size and monoblock type ,easy installation .
5.High temperature heat pump.output 60°C .
6.Inverter heat pump, -25℃ low ambient temperature operation.

7.Inverter instant heating technology,instant water heater.

8.built in 3kw electric heater

9.Wifi control included .User and installation company control or monitor the heat pump by APP,and itself helpful to check the working data by APP when the heat pump have the error ,easy to solve the after-sales problem ,save maintenance cost

10.RS485 included ,connect the heat pump with home smart system ,it's easy to control all home application together .

Specification

Model	RMAW-03ZR1-V				Model	RMAW-04ZR3-V
water temp ℃ Air temp ℃	30/35	40/45	50/55		water temp ℃ Air temp ℃	30/35	40/45	50/55
-25	3.96	3.77	3.7		-25	5.22	4.97	4.87
-20	5.17	4.84	4.34		-20	6.8	6.37	5.72
-15	6.03	5.74	5.17		-15	7.94	7.56	6.8
-7	7.06	6.72	6.46		-7	9.30	8.86	8.50
2	7.75	7.38	7.23		2	10.21	9.72	9.53
7	9.43	8.2	7.38		7	12.42	10.8	9.72
12	9.9	9.43	9.24		12	13.04	12.42	12.17
20	10.76	10.25	9.84		20	14.18	13.5	12.96
Heating Capacity(kW)					Heating Capacity(kW)
Model	RMAW-03ZR1-V				Model	RMAW-04ZR3-V
water temp ℃ Air temp ℃	30/35	40/45	50/55		water temp ℃ Air temp ℃	30/35	40/45	50/55
-25	1.71	1.50	1.26		-25	1.73	1.51	1.28
-20	2.41	2.14	1.51		-20	2.44	2.16	1.53
-15	2.73	2.34	1.82		-15	2.76	2.37	1.84
-7	3.47	2.97	2.28		-7	3.51	3.01	2.31
2	3.77	3.23	2.75		2	3.81	3.27	2.78
7	4.40	3.45	2.95		7	4.45	3.48	2.99
12	4.72	4.04	3.30		12	4.77	4.09	3.34
20	5.05	4.35	3.48		20	5.13	4.40	3.52
COP(kW/kW)					COP(kW/kW)

Dear customers,
You can choose monoblock or split air source heat pumps according to environmental needs!
Simple selection of air source combined supply system
3HP building area is 60-80 square meters, and the selected flow of water pump is 1.56m ³/ h. The lift is 13m-18m.
4HP building area is 70-90m2, and the selected flow of water pump is 2.1m ³/ h. The lift is 13m-18m.
5HP building area is 90-120 square meters, and the selected flow of water pump is 2.6m ³/ h. The lift is 13m-18m.
6hp building area is 110-150 square meters, and the selected flow of water pump is 3M ³/ h. Lift: 13m-18m.
8HP building area is 150-180 square meters, and the selected flow of water pump is 3.8m ³/ h. The lift is 13m-18m.
10HP building area is 180-250m2, and the selected flow of water pump is 5.8m ³/ h. The lift is 15m-20m.
